XRMD210104010
XINDRAY

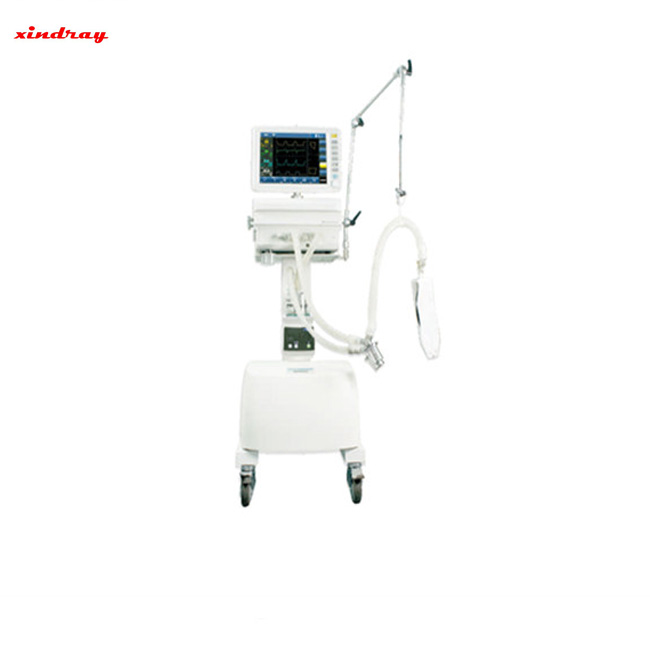

High Performance Ventilator For ICU
Product features
20-2000ml(VCV); Applicable to adult, pediatric and infant
Various ventilation modes for different needs of all patients
15 inch TFT touch screen & big font view for easy observation
Touch screen & Navigation knob for simple operation
Simultaneous display of 4 waveforms and 2 loops
Optional CO2 monitoring helps verity correct intubation and stability of metabolism
Optional SpO2 monitoring avoids deficiency of oxygen
Synchronized nebulizer (optional)
Low noise and water-free medical air compressor (optional)
Expiratory valve could be taken off for autoclavable disinfection to avoid cross-infection
Active exhalation valve with anti-condensation design
World leading brands of key components of ventilator ensure high accuracy and stable performance
Advanced proportional solenoid technology realize accurate ventilation control
Multi-safety mechanism and three-priority alarm of visual and audio for different risks
Technical Specification:
Patient types | Adult, Pediatric and infant(>5kg) |
Ventilation modes | VCV, PCV, SIMV(V)+PS, SIMV(P)+PS, SPONT/CPAP, Sigh PRVC, DualPAP, NPPV, Manual, Standby |
Tidal volume | 20-2000ml |
Ventilation frequency | 1-100 bpm |
Inspiration time | 0.1-10 s(increment: 0.1s) |
FiO2 | 21%-100% |
Flow trigger | 0.5-20L/min |
Pressure trigger | -20-0cmH2O |
Pressure control | 5-70 cmH2O |
Pressure support | 0-70 cmH2O |
Electronic PEEP | 0-50 cmH2O(increment: 1 cmH2O) |
Nebulizer | 30 minutes |
Direct access function | 100% O2 2 min, Inspiration hold, Expiration hold, Manual, Freeze, Lock |
Monitoring | Volume: VTI, VTE, MV, MVspont. Pressure: Ppeak, Pmean, Pplat, Pmin, PEEP, Freq, Fspont, I:E, FiO2, Compliance, Resistance, RSB, P0.1, NIF, Auto PEEP, Rcexp, Cdyn Co2 module (optional): EtCO2 SpO2 module (optional): SpO2, PR |
Waveform | P-T, F-T, V-T, Optional: SpO2-T, EtCO2-T |
Loop | P-V, F-V, F-P, Optional: Volume-EtCO2 |
Trend | Peak, FiO2, PEEP, MV, VTE, VTI |
System log | 500 events(setting and alarm) |
Alarm | Audio and visual alarms with three levels Volumes: Vte high/low, MV high/low; Pressure: Paw high/low O2 supply pressure high/low, Air supply pressure high/low Apnea, Continuous high airway pressure Freq high/low, FiO2 high/low SpO2 low (optional), EtCO2 high/low (optional) Power: AC power failure, low battery power, Exhausted battery failure |
Dimensions(H*W*D) | Host: 645*735*610(mm) Trolley: 225*805*555(mm) |
Communication Interface | RS232 |
Screen | 15 inch TFT touch screen |
Net weight | Host: 45kg, Trolley: 22.5kg |
power | 100-240V, 50/60Hz, 1A(Max) |
Lithium Battery | Minimum 120 minutes |
