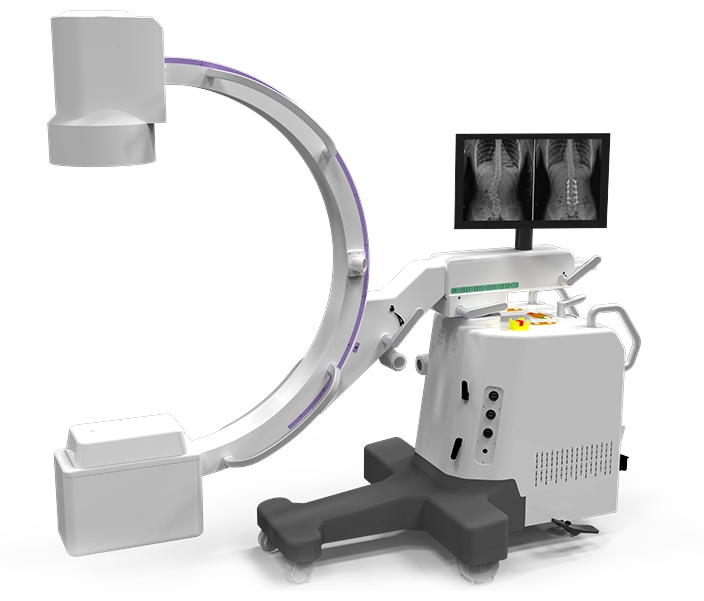

Xrx12D C-arm X-ray Machine
Features:
Usage:
Orthopaedics:osteopathy, diaplasis, nailing
Surgery: removing foreign body, cardiac catheter, implanting pace maker, interventional therapy, partial radiography, local photography, and other work.
1. With a compact appearance, and easy to operate
2. Unique base electric auxiliary support arm design, it's more security for using.
3. A unique hand-held controller design, convenient to operate
4. With a high-quality knockdown X-ray generator to reduce radiation
5. With the Perspective KV,MA automatically track fluoroscopy to make the image brightness and clearness optimum
6. Toshiba image intensifier, the quality is stable and reliable, a good image clarity
7. Clinical Video system with high performance,8 images storage volume, and three 14inchhigh-resolution monitors
8. Installation of dense grain grids, to further enhance image sharpness
Specifications:
1.Fluoroscopic Capacity
Max rated capacity : Tube Current 4mA, Tube Voltage 120kV
Automatic Fluoroscopy : Tube Voltage:40kV~120kV Adjust Automatically
Tube Current : 0.3mA~4mA Manually Settings
Manual Fluoroscopy : Continuous Tube Voltage:40kV~120kV
Continuous Tube Current : 0.3mA~4mA
Pulse Fluoroscopy : Continuous Tube Voltage 40kV~120kV
Continuous Tube Current 4.1mA~8mA
2. Photography Capacity
Max rated capacity : 5 KW
Tube Voltage and Current Combination : 40kV~49kV 1 ~180 mAs
50kV~59kV 1 ~140 mAs
60kV~69kV 1 ~125 mAs
70kV~79kV 1 ~110 mAs
80kV~89kV 1 ~100 mAs
90kV~99kV 1 ~80 mAs
100kV~109kV 1 ~63 mAs
110kV~120kV 1 ~50 mAs
Plate holder Size : 200mm×250mm(8″×10″)or
250mm×300mm(10″×12″)
3. X-ray Tube
X-ray Tube Special for High Frequency
Fixed anode Dual-focus: large focus: 1.5, small focus: 0.3mm*0.3mm (Advantage)
Inverter Frequency : 40KHz
Thermal capacity : 35KJ (47KHU)
4.Video System
Image Intensifier : Image Intensifier made by TOSHIBA (9″, 6″,4.5″)
CCD Vidicon : Ultra low-light CCD camera imported from Japan
Monitor : Horizontal 1000 lines and vertical 800 lines, Bandwidth : 12.5MHz, Image/sec : 75
CCU(central control) : Recursive Filter: K=8,8 images storage, image upright, image overturn,positive & negative image;LIH(last Image Hold) and OSD(monitor display)
5.Structure:
Directive wheel : ±90°revolution,can freely change the moving direction of the unit .
Ascending & Descending Range of Pillar : ≥400mm
C-arm : Forward and Backward Movement: 200mm
Revolution around Horizontal Axis: ±180°
Revolution around Vertical Axis : ±15°( Advantage), better than others' ±12.5°, easier to take special positions radiography )
Slip on orbit: 120°(+90°~ -30°)
FAQ
1. What is the warranty for your products?
The free warranty is one year from the day on which customers have received goods
2.How long is the validity of quotation?
Generally,the price is valid within one month from the date of quotation.
3.What is your payment term?
T/T in advance, Western Union, MoneyGram, Cash, Trade Assurance etc.
4.What is your order process?
Generally, Confirm Proforma Invoice, Payment through T/T in advance, Production, Shipping the goods to your country
5.Do you have the certificate ?
Yes, most of our products have the CE ISO certificate.
6.May we visit your factory?
Welcome to our factory, please let us know your visiting schedule in advance, we will prepare for you.
